LOMVUM TRUE RMS Multimeter 6000 COUNTS High Precision Digital Multimeter NCV Smart Multimeter Auto Ranging AC/DC Flashlight

GOWOW-HOME

Regular price $35.97

Shipping calculated at checkout.

LOMVUM TRUE RMS Multimeter 6000 COUNTS High Precision Digital Smart Multimeter with Flashlight NCV

LOMVUM T18 Series multimeters are compact and portable, they are ideal devices for electrician. A,B,C model are manual type, D is AUTO range, E is smart type which can automatically identify the ACV, DCV, resistance etc.The users with no professional physical knowledge can measure the technical data of electrical appliance easily. Model B has a special Infrared Remote Control Test function which can use to repair Infrared Remote controller of home appliances. Model C and model D has temperature measurement function. Model D model E can measure TURE RMS, AC/DC current/voltage,capacitance, frequency etc.



Difference between T18 series

Model A

    B

C D   E
Operation Way  Manual AUTO Intelligent
Maximum Value 2000 Counts 6000 Counts
Themperature ×     ×     -20℃-1000℃    -20℃-1000℃ ×
Infrared detection ×    √   × × ×
hFE  √  × ×
True RMS ×    ×    ×
Duty Ratio ×

   ×

× × 1%-99%
AC Voltage 200V/600V  60mV/600mV/6V/60V/600V 1V-600V
DC Voltage 200mV/2V/20V/200V/600V 60mV/600mV/6V/60V/600V 0.5V-600V
DC Current 2mA/20mA/10A   20mA/10A 60mA/600mA/10A ×
AC Current × × × 60mA/600mA/10A ×
Frequency × × × 60Hz/600Hz/6KHz/600KHz/10MHz 10Hz~1000Hz
Capacitance × × × 60nF/600nF/6uF/60uF/600uF/6mF/100mF 0.5uF ~6000uF
Resistance 200Ω/2kΩ/200kΩ/2MΩ/20MΩ 600Ω/6kΩ/60kΩ/6MΩ/60MΩ 1Ω-10MΩ
Common Functions

Flashlight/Backlight/NCV/Diode and Buzzer Test/On-off Test/

Data Hold/Overload Protection/Low Battery Indicator

Power Supply 3pcs*1.5VAAA battery(not included)
Size 147 (L) 71 (W) 45 (H) mm



Infrared Remote Control Test

USE Infrared Remote Control Test mode to check wheter your Remote Controller work normally or not. only model B has this function.

NCV Function

Non-contact high voltage detection, the higher the voltage,3 different warning, the higher the voltage, the number will show from 1 to 3. 3 means the voltage is very high and very close.

Widely Application

Highly appplied in home appliances maintenance, factory equipment maintenance, cellphone maitenance, computer maintenance ect.

LED Flashlight & Backlit Screen

We adopted LED Flashlight & Backlit Screen design which is Convenient for dark working enviroment.

Temperature Measurement

Model C and Model D has Temperature Measurement function available.

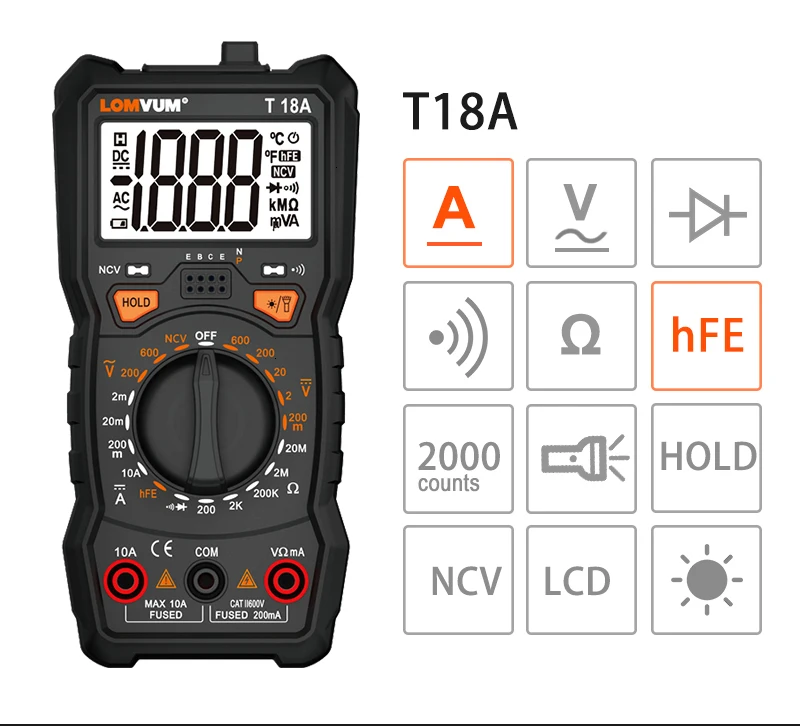

T18A

Operation:Manual Range AC Voltage:200V/600V DC Voltage:200mV/2V/20V/200V/600V DC Current :2mA/20mA/200mA/10A Resistance:200Ω/2kΩ/200kΩ/2MΩ/20MΩ Maximum Display Value:1999 Flashlight :5MM LED Light YES NCV:90-1000V AC Detection YES Backlight:YES Diode and Buzzer Test:YES On-off Test:YES Overload Protection:YES Low Battery Indicator:YES Size:147 (L) 71 (W) 45 (H) mm Power Supply:3pcs*1.5VAAA battery(not included)

T18B

Operation:Manual Range AC Voltage:200V/600V DC Voltage:200mV/2V/20V/200V/600V DC Current :20mA/200mA/10A Resistance:200Ω/2kΩ/200kΩ/2MΩ/20MΩ Frequency (Ture RMS): 60HZ-1000HZ Maximum Display Value: 1999 Flashlight :5MM LED Light YES NCV:90-1000V AC Detection YES Infrared Remote Control Test: YES Backlight:YES Diode and Buzzer Test:YES On-off Test:YES Overload Protection:YES Low Battery Indicator:YES Size:147 (L) 71 (W) 45 (H) mm Power Supply:3pcs*1.5VAAA battery(not included)

T18C

Operation:Manual Range AC Voltage:200V/600V DC Voltage:200mV/2V/20V/200V/600V DC Current :20mA/200mA/10A Resistance:200Ω/2kΩ/200kΩ/2MΩ/20MΩ Maximum Display Value: 1999 Flashlight :5MM LED Light YES NCV:90-1000V AC Detection YES Temperature measurement:-200℃-1000℃ Backlight:YES Diode and Buzzer Test:YES Transistor test: YES On-off Test:YES Overload Protection:YES Low Battery Indicator:YES Size:147 (L) 71 (W) 45 (H) mm Power Supply:3pcs*1.5VAAA battery(not included)

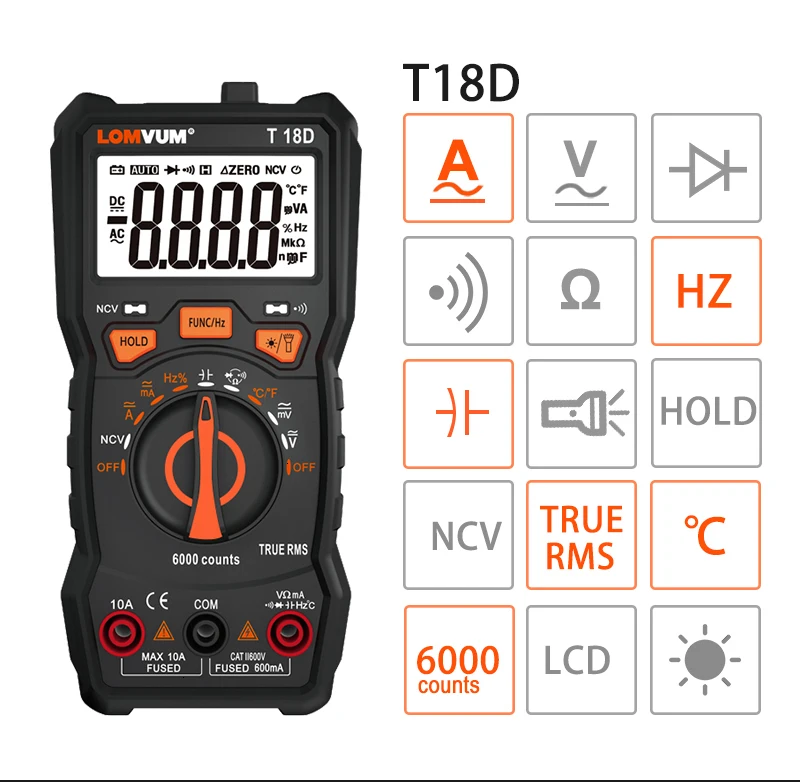

T18D

Operation:AUTO Range True RMS: YES AC Voltage:60mV/600mV/6V/60V/600V DC Voltage:60mV/600mV/6V/60V/600V DC Current :60mA/600mA/10A AC Current :60mA/600mA/10A Resistance:600Ω/6kΩ/60kΩ/6MΩ/60MΩ Frequency:60Hz/600Hz/6KHz/600KHz/10MHz Capacitance:60nF/600nF/6uF/60uF/600uF/6mF/100mF Temperature measurement:-200℃-1000℃(-4℉-1832℉) Maximum Display Value: 5999 Duty Ratio:1%-99% Flashlight :5MM LED Light YES NCV:90-1000V AC Detection YES Backlight:YES Diode and Buzzer Test:YES On-off Test:YES Overload Protection:YES Low Battery Indicator:YES Size:147 (L) 71 (W) 45 (H) mm Power Supply:3pcs*1.5VAAA battery(not included)

T18E

Operation: SMART True RMS: YES DC Voltage:0.5V-600V AC Voltage:1V-600V Resistance:1Ω-10MΩ Capacitance:0.5uF - 6000uF Frequency: 10Hz-1000Hz Max Display:5999 Backlight:YES Flashlight:YES Diode Test:YES NCV Detection:YES On-off Test:YES Overload Protection:YES Low Battery Indicator:YES Size:147 (L) 71 (W) 45 (H) mm Power Supply:3pcs*1.5VAAA battery(not included)

  Comparision





T18A

T18B

T18C

T18D

T18E

NCV

90V~1000V AC Sound and light alarm

Black Light



LED Lighting

5mmL LED

Magnetic adsorption



Diode detection



Conduction test



-

-

-

-

Infrared remote control test



-

-

-

-

Temperature



-

-

-

Transistor test



-

-

-

-

Low voltage Display



Data hold



Negative polarity display



Sampling frequency

3times/s

Operation method

Manual range

Manual range

Manual range

Manual range

AUTO

range

SMART

Maximum Display



1999

1999

1999

5999

5999

mA input protection

fuse

200mA

200mA

200mA

600mA

600mA

10A input protection

fuse

10A

10A

10A

10A

10A

Drop protection shell case









FAQ

Q: Which model has temperature measurement function?

A: model C and model D

Q: Which model has capacitance measurement function and frequency function?

A: model D and model E

Q: which model has Infrared Remote Control Test function?

A: model B
